Oneway 24'' Lathes


Oneway Manufacturing produces lathes that are considered among the best in their class. The design is robust and practical, making for a user friendly machine. These lathes are available with a 24” swing and either 16” or 36” between centers. Depending on the model each lathe weighs between 600 and 850 pounds.
The Oneway 24" Lathes come with a safe driver (drive center), Live Tail Center, 6" Faceplate, 14" Tool Rest, Knockout Bar and instructions.

Headstock: Heavy duty solid steel Hardened spindle with #2 Morse Taper, threaded for 33mm by 3.5; four ball bearings; spindle lock; 48 position indexing plate. Spindle Heights available: 20” Swing Models: 41; 42”; 44”; 46”, 24” Swing Models: 43; 44”; 46”; 48”.

Tailstock: Heavy one piece cast iron; 1-1/2" diameter hollow quill with 4" travel; #3 Morse Taper; handle for easy removal; rigid clamp to prevent flexing or creep.

Lathe Bed: 3/8” thick steel welded on top of a 10-3/4"diameter heavy steel tube with 5/16" wall thickness; precision machined.

Drive System: 1-1/2 HP AC Electronic Variable Speed 220V motor (2HP & 3HP availableas an option); 3-step pulley for speed ranges of: 0-800; 0-1800 or 0-3000 rpm; reversing switch; controls.

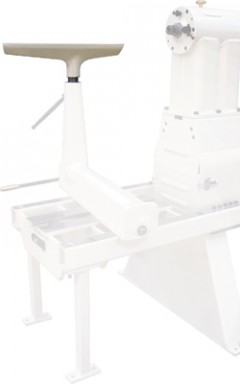

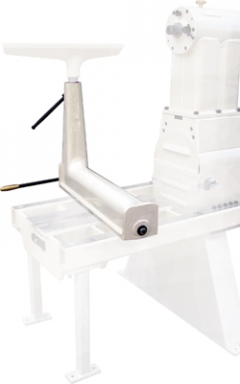

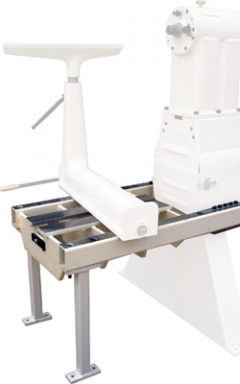

Tool Rest Base: Cast iron with a special cam-lock design; easy placement and secure locking without creeping; has 14" toolrest.

Add $260.00 for 2hp motor, $588.00 for 3hp.

Shipping not included in lathe or accessory prices. Please contact us for freight cost on lathe and lathe accessory shipments.
