Carter Face-Off System

This unique system allows the turner to use multiple faceplates for their work, while only using one threaded hub on the lathe. It is great for class situations where each student can keep a faceplate attached to their work and re-mount it when needed. The faceplate is located with two hardened pins for accuracy and attaches to the hub with 4 screws.

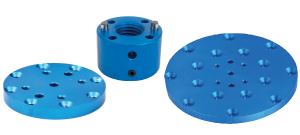

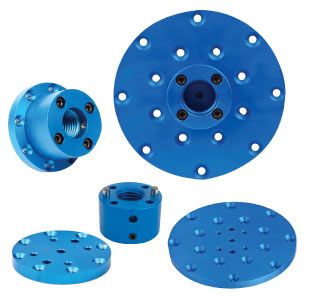

• 3" and 6" Faceplates, measure 3/8" thick
• 3" has 8 screw holes 6" has 16 screw holes
• 1" x 8tpi and 1-1/4" x 8tpi Hubs available
• Two locating pins for increased accuracy
• Faceplate attaches to Hub with 4 screws
• Made of Aircraft Quality 6061 Aluminum
• Centers blanks cut on Carter Circle Cutting System
• Uses 1/4" Rod to perfectly center wood blanks
