Oneway Revolving Live Centers

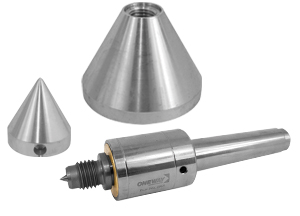

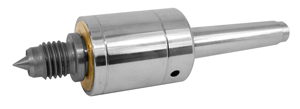

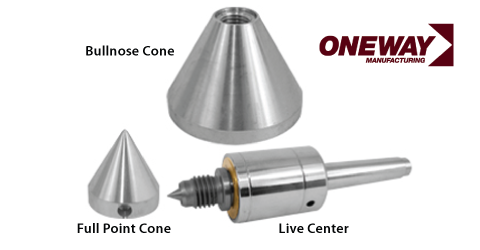

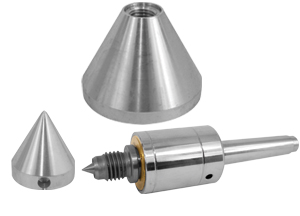

The Oneway Live Center is constructed to withstand hard use by professionals. This live center has double row sealed ball bearings that are housed in a 2-1/4" long by 1-5/8" diameter body. The end threaded section, which is 1-1/8" long and is made into a 5/8" dia. cup center (with a removable center point) rotates, promoting maximum safety and precision. A knockout bar is provided with the live center for removing the center point. Two aluminum cones come with the Live Center. They can be threaded onto the cup center to allow self-centering on any hole up to 3-1/4" in diameter. The Larger Cone can be reversed, permitting self-centering of round or square spindles up to 3" in diameter. The smaller Full Point Cone can center on holes up to 1-1/2" in diameter. A removable center point and knock out rod come standard.
