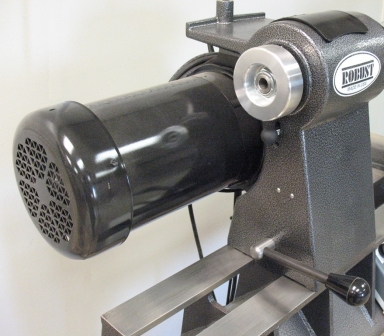

The Robust American Beauty Lathe is used by many woodturning professionals. It is made in the USA with only top quality materials.
The American Beauty features a stainless steel bed that will not rust and has a hardened Chrome Moly spindle There are many options available so you can tailor the lathe to your needs. Each lathe comes with a 7 Year "Head to Tail" Warranty that even includes the bearings.
- Stainless Steel bed ways, won't rust
- Swing Over Bed - 25"
- Swing over Banjo - 20"
- Hardened Spindle - 1-1/4"x 8 TPI
- Spindle Height - Adjustable 42" to 49"
- Headstock Taper - #2MT
- Headstock Spindle Bore - 1/2"
- Sliding Headstock with Cam Lock
- #2MT Headstock Taper
- Spindle Indexing - 48 position
- Spindle Lock Disconnects Switch for safety
- Heavy Duty Ball Bearings
- Cam Lock Banjo with 1" Post Hole
- Tailstock Taper - #2MT
- Tailstock Quill Travel - 4"
- Self Ejecting Tailstock Quill
- Distance Between Centers - 28"
- TEFC Motor - 2 HP 220V Standard or 3 HP 220V upgrade
- Commercial USA Motor with reversing
- AC Electronic Inverter Speeds:
- 50-1500 rpm or 100-3000 rpm
- Moveable Magnetic Switch
- Net Weight - 630 lbs
- Dimensions - 58"H x 62"L x 30"D
- Warranty - 7 Years
- Made in the USA
Prices do not include Freight Charges. Please call us at 800 683-8876 or email sales@packardwoodworks.com for a Freight Quote.
