SKU: 201524 LAGUNA Revo 15|24 Lathe

With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing  space constrained users with more power and capacity.

 Features on the revo15|24 include:

- World-class fit and finish Laguna is known for
- Sliding headstock for shorter bed length or ergonomic outboard bowl turning
- Infinite electronic variable speed from 50 - 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center

Optional Accessories:

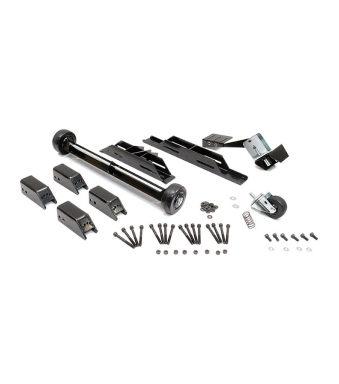

- Wheel system allows the lathe to be easily moved around the shop when needed - SKU#  201524WS
-  20” steel extension fits in two positions for increased length of spindle turning capacity - SKU#  201524BE
-  LED light featuring Chameleon hot/cold to configure perfect work lighting for your shop - SKU#  201524-LED

Specs:
• Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
• Motor: Permanent Magnet DC, 2150 RPM
• PWM: Pulse Width Module Speed Control
• Recommended Breaker: 15 Amp
• Spring Loaded Spindle Lock

• Spindle Size: 1 ¼” X 8TPI RH, #2 Morse Taper

• Tailstock Quill: 4 ½” Travel, Self-Ejecting
• Swing over Bed:15-1/2”
• Swing over Banjo: 11-3/32”
• Max. Outboard Swing over Bed Extension (lower position: 25”)
• Tool-Rest Post Size: 1”
• Tool-Rest Length:   12”
• RPM High:650-4200
• RPM Mid:   325-2100
• RPM Low: 50-650
• Floor to Spindle Center Variable: 36.4” to 51.4"
• Floor to Bed Variable: 28.6” to 43.6”
• Spindle Index #: 24 Position with Lock
• Distance between Centers: 24”
• Headstock/Tailstock Through-Bore: 3/8”
• Headstock Travel: Full Length
• Tailstock Storage of Centers
• Floor Space: W 60” D 22” H 56”
• Box Dimensions:    L 52” W 22” H22”
• Weight Net/Ship: 288/302 Lbs.

Standard Equipment includes: Live Tail Center, Drive Center, 3" Faceplate, Knock-Out Rod, Tommy Bar, and Manual.

There is a $199.00 additional handling charge for this item.

This item is shipped from the manufacturer by truck. Air shipping and international shipping are not available for this item. Ships to the 48 contiguous states only. It is not available for pick up at our facility.
