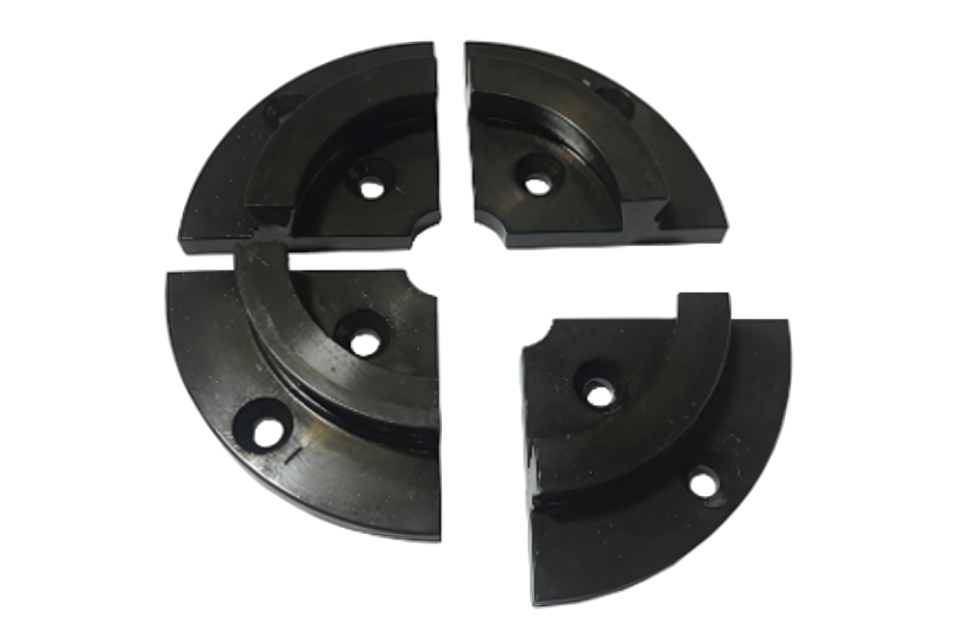

Vicmarc VM120 Dovetail Jaws - 85mm (3-3/8")

Dovetail Jaws have been designed for mounting bowls by expanding into a recess or clamping onto a spigot. The Vicmarc range of Dovetail Jaws also have a machined taper on the face of the dovetail which aids in clamping both on a tenon (clamp mode) and in a recess (expansion mode). When clamping on a tenon it is often the case that the flat section of the bowl/tenon will be tapered the wrong way slightly or may have wood fibres or debris that can be in the corner of the tenon. With the jaws being slightly tapered it allows for a firm and accurate hold slightly away from the corner. This will ensure an accurate hold without wobble. When clamping in a recess the flat section is often tapered towards the centre of the bowl. This taper allows for a firm hold right in the corner (outermost diameter) which will ensure an accurate hold.

These dovetail jaws are used on the VM120 and VM 150 Chucks.

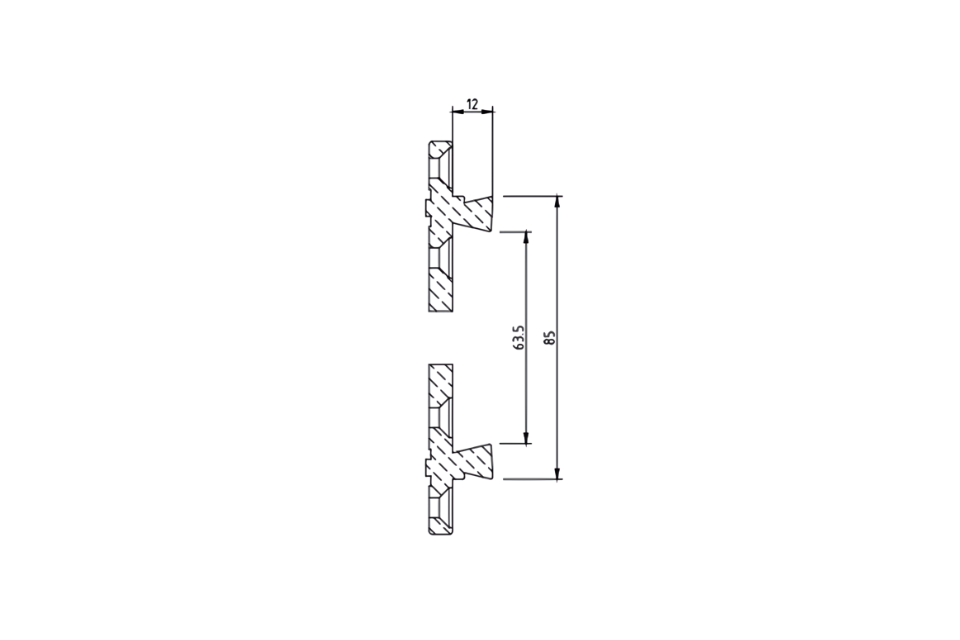

Grips: 2-1/2" to 3-5/8"

Expands: 3-3/8" to 4-1/2"

Thumbnail Filmstrip of Vicmarc VM120 Dovetail Jaws - 85mm Images

SKU: 118175 Vicmarc VM120 Dovetail Jaws - 85mm
