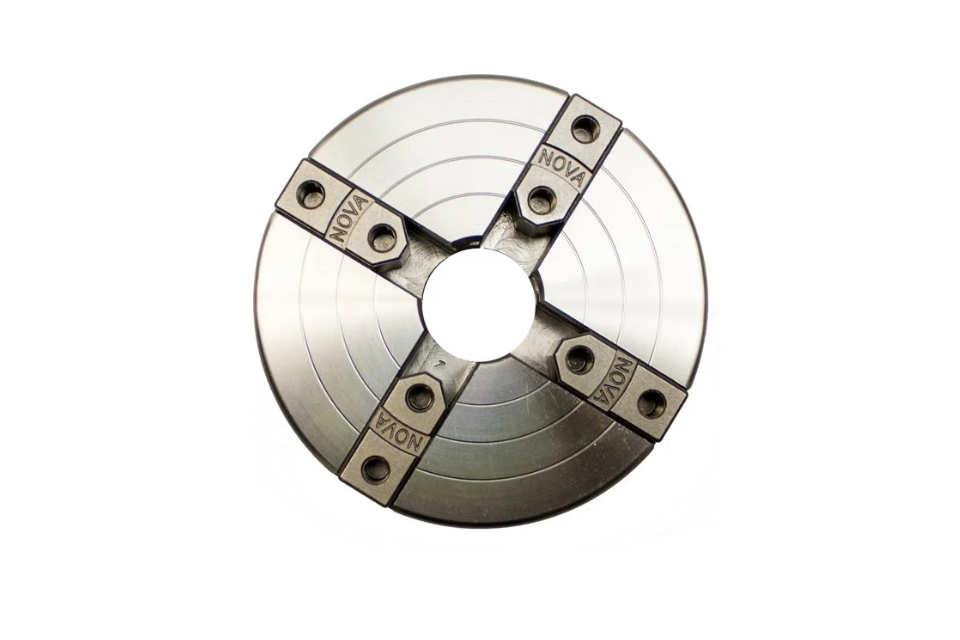

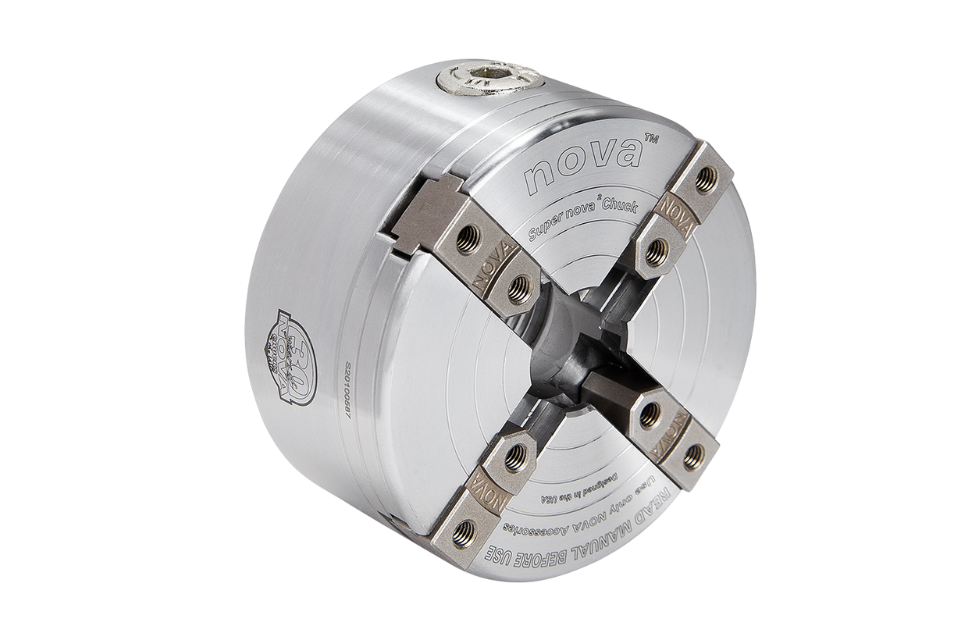

Supernova2 Lite Chuck (Body Only)
- Precision machined from 1045 High Tensile Steel with a polished self-metal finish to allow for closer tolerances.
- Fully sealed composite indexing backing plate. Made from ultra-tough Duracon composite, reinforced with stranded glass-fibers for extremely long life in tough conditions. Self-lubricating properties. Unique indexing function built into the backing plate. Holographic sticker for NOVA authenticity.
- Unique tilt away T-bar handle for easy and convenient access
- Fits the full range of NOVA chuck accessories (Note: Does not come with accessory jaws)
- Powerful Geared Grip with Tuff Lock™ Technology. Precise, hardened geared action delivers solid, vibration free turning. Solid, vibration. Single Handed Operation. Fast and convenient when mounting your project. More time spent turning and less time spent preparing.
- Captured pinion and ball nose Allen key with large, easy grip handle. Rotation arrow for easy reference and fast opening and closing action. Unique, tilt away action, means it can be angled back in operation, away from work.
- Common accessory jaw fixing profile – compatible across all NOVA chucks and accessories.
- High Tech Precision Composite Jaw Slides.
- Auto Safety Stop Feature. Jaw slides can’t protrude past the chuck body.
- Common Insert/Adaptor Fitting – compatible across all NOVA Chucks (Insert/Adaptors sold separately).
Box Includes:
- 1 x SuperNOVA Chuck body complete with Tuff lock gearing and composite slides, threaded to take NOVA Insert/Adaptors (note: additional purchase)
- 1 x Tilt Away Handle
- Instructions
IMPORTANT: A threaded insert needs to be purchased separately to fit your lathe spindle.
TECHNICAL SPECIFICATIONS:
- Recommended for power work-holding on lathes from 350mm (14”) to 508mm (20”) diameter swing.
- Up to 736mm/29” diameter bowls (using PowerGrip™ accessory jaws – Additional purchase).
- Up to 482mm/19” length spigots (using PowerGrip™ accessory jaws – Additional purchase).
- Up to 310mm/12″ bowl (using standard 50mm accessories jaw – Additional purchase, included with SKU 23264).
- Up to 150mm/6″ length x 10mm/4″ diameter (using standard 50mm accessories jaw – Additional purchase, included with SKU 23264).
- 24 Division Index built into the backing plate design.
- Packaged Weight: 2kgs/4.4lbs
WARRANTY: 10 Year Chuck Full Replacement from Manufacture Defects*
Safety Advisory!
Only use authentic NOVA accessories on your NOVA chuck. Using non-genuine NOVA and copies of accessories could lead to operation and safety issues and will void our warranty. NOVA accessories are designed for use only on NOVA Chucks. Do not use on any other chuck.
